Coffee & Tea

Leader of cutting edge technology / Pride of LOTTE ENGINEERING & MACHINERY MFG is more than usual

Product Lines

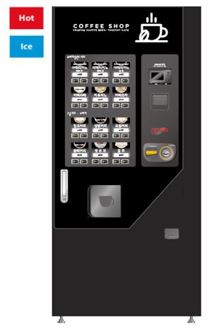

LVM-6340KB

Instant Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Stable and low noise cooling system by 2 compressors cycle.

4. High efficiency cooling unit for low energy consumption.

5. Flexible button array(Select button: total 24ea).

6. Free Mix available by setting ingredient quantity.

7. Large capacity ice maker (Max 3kg).

연구분야 소개
Size(WXHXD)	860 X 1,830 X 760mm
Weight (kg)	190
Button	Total 24 Selections(Hot & Ice)Hot 12ea + Ice 12ea 12 different tastes based on User setting
Vendible quantity	Total 600 cups(9.0 oz: 300 cups / 9.0 oz: 300 cups)
Cup Size	9.0 oz
Water supply	60 L
Sold out control system	Applied
Lamp	LED 7W * 3EA / 5W * 1EA
Protocal Type	MDB compatible
Voltage Frequncy	220V / 60Hz
Power Consumption	1,900W
Door Lock	Applied(optional)

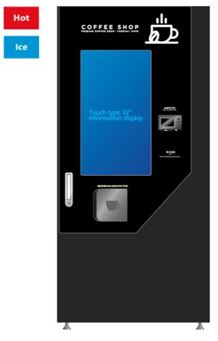

LVM-6340KAD

Instant Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Stable and low noise cooling system by 2 compressors cycle.

4. High efficiency cooling unit for low energy consumption.

5. 21.5 Touch screen.

6. Large capacity ice maker (Max. 3kg)

연구분야 소개
Size(WXHXD)	860 X 1,830 X 760mm
Weight (kg)	193
Button	Various recipe possible
Vendible quantity	Total 200 cups(15.0 oz: 200 cups)
Cup Size	15.0 oz
Water supply	60 L
Sold out control system	Applied
Lamp	LED 5W - 1EA
Protocal Type	MDB compatible
Voltage Frequncy	220V / 60Hz
Power Consumption	1,900W
Door Lock	None (automaic door)

LVM-6132

Instant Ice Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Stable and low noise cooling system by 2 compressors cycle.

4. High efficiency cooling unit for low energy consumption.

5. Flexible button array (Select button: total 24ea).

6. Free Mix available by setting ingredient quantity

7. Large capacity ice maker (Max. 3kg)

연구분야 소개
Size(WXHXD)	770 X 1,830 X 690mm
Weight (kg)	170
Seling products	Total 24 Selection(Hot & Ice) Instant 16 selections / choco or Tea : 8 selections (6.5oz: 600cups / 9.0oz: 300cups)
Vendible quantity	Total 900cups (6.5oz: 600cups / 9.0oz: 300cups)
Cup Size	6.5 oz & 9.0 oz
Water supply	Water tank down installed
Sold out control system	Applied
Lamp	LED illumination
Protocal Type	MDB compatible
Voltage Frequncy	220V / 50 Hz, 60Hz
Power Consumption	2,100W

LVM-6143

Espresso Ice Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Stable and low noise cooling system by 2 compressors cycle.

4. High efficiency cooling unit for low energy consumption.

5. Flexible button array (Select button: total 24ea).

6. Free Mix available by setting ingredient quantity

7. Large capacity ice maker (Max. 3kg)

연구분야 소개
Size(WXHXD)	860 X 1,830 X 730mm
Weight (kg)	200
Selling products	Total 12 tastes Espresso : 5 tastes / Instant : 4 tastes / Tea : 3 tastes
Vendible quantity	(6.5oz: 400cups / 9.0oz: 300cups)
Cup Size	Optional with 6.5 oz or 9.0 oz
Water supply	Water tank down installed
Protocol Type	MDB compatible
Voltage Frequncy	220V / 50 Hz, 60Hz
Power Consumption	2,100W

LVM-6112

Instant Coffee Vending Machines

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Flexible button array (Select button: total 12ea).

4. Free Mix available by setting ingredient quantity

5. Customized flavor - Can adjust sugar content at level 1 to 5)

연구분야 소개
Selling products	Coffee 1 kind 4 taste, Natural coffee bean(Hot/Ice) 1 kind 5 taste, Tea 2 kind 3 taste
Vendible quantity	600 cups
Cup Size	Optional with 6.5 oz or 7.0 oz
Select button	12 ea
Canister	7 ea
Ingredient storing capacity	Instant coffee 1,100g / Natural coffee bean 3,500g/ Sugar 3,000g / Cream 2,300g / Tea 3,800g
Water tank	58L(29 Liters 2 sets)
Water filter	Exclusive filter (Ice ultraviolet light sterillzation)
Weight	190Kg
Water feeding	Down forced water flow
control method	Micom control
Size(WXHXD)	770 X 1,830 X 690mm
Protocal Type	MDB compatible

LVM-6141

Espresso Coffee Vending Machines

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Flexible button array (Select button: total 12ea).

4. Free Mix available by setting ingredient quantity

연구분야 소개
Selling products	Coffee 1 kind 4 taste, Natural coffee bean(Hot/Ice) 1 kind 5 taste, Tea 2 kind 3 taste
Vendible quantity	400 cups(6.5 oz), 300 cups (9.0 oz)
Cup Size	Optional with 6.5 oz or 9.0 oz
Select button	12 ea
Canister	7 ea(1ea coffee bean canister)
Ingredient storing capacity	Instant coffee 1,100g / Natural coffee bean 3,500g/ Sugar 3,000g / Cream 2,300g / Tea 3,800g
Water tank	60L
Water filter	Exclusive filter (Ice ultraviolet light sterillzation)
Weight	190Kg
Water feeding	Down forced water flow
control method	Micom control
Size(WXHXD)	770 X 1,830 X 690mm
Protocal Type	MDB compatible

LVM-3112

Instant Slim Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. High space utilzation (it can be installed in small space).

4. Free Mix available by setting ingredient quantity

5. in can install in small space.

연구분야 소개
Selling products	Coffee 1 kind 4 taste, Natural coffee bean(Hot/Ice) 1 kind 5 taste, Tea 2 kind 3 taste
Vending quantity	300 cups(Serial sales : hot - more than 40 cups)
Cup Size	6.5 oz or 7.0 oz
Select button	6
Canister	4
Ingredient storing capacity	Instant coffee 1,100g / Natural coffee bean 3,500g / Sugar 3,000g / Cream 2,300g / Tea 3,800g
Water tank	60L
Water filter	Exclusive filter(Ice ultraviolet light sterilization)
Water feeding	Down forced water flow
control method	Micom control
Size(WXHXD)	580 X 1,630 X 660mm

LVM-3142

Espresso Slim Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. High space utilzation (it can be installed in small space).

4. Free Mix available by setting ingredient quantity

5. in can install in small space.

연구분야 소개
Selling products	Total 6 tastes Ban Coffee x 4 / Tea x 2
Vending quantity	350 cups(6.5 oz)
Cup Size	6.5
Select button	6 ea
Canister	4ea(1ea coffee bean canister)
Water tank	60L
Water filter	Exclusive filter (Ice ultraviolet light sterilization)
Weight	93 kg
Water feeding	Down forced water flow
control method	Micom control
Size(WXHXD)	580 X 1,630 X 660mm

LVM-2140

Espresso Slim Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. High space utilzation (it can be installed in small space).

4. Free Mix available by setting ingredient quantity

5. it can install in small space.

연구분야 소개
Size(WXHXD)	580 X 1,630 X 660mm
Weight(kg)	90
Selling products	Total 8 tastes : Bean coffee x 6/Instant x 2
Vendible quantity	6.5oz : 200 cups
Cup Size	6.5 oz
Water supply	Water tank down installed
Protocol Type	MDB compatible
Voltage Frequency	220V / 50 Hz, 60 Hz
Power Consumption	1,650 W

LVM-6240

Espresso Ice Coffee Vending Machine

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Stable and low noise cooling system by 2 compressors cycle.

4. High efficiency cooling unit for low energy consumption

5. 46" Touch screen LCD(Mobile payment system and advertisement)

6. Free Mix available by setting ingredient quantity

7. Large capacity ice maker (Max. 3kg)

연구분야 소개
Size(WXHXD)	860 X 730 X 1,830
Weight(kg)	205
Selling products	Total 12 tastes Espresso : 6 tastes / Instant : 3 tastes / Tea 3 taste
Vendible quantity	Total 700 coups (6.5oz: 400 cups / 9oz: 300 cups)
Cup Size	Optional with 6.5 oz or 9.0 oz
Water supply	Water tank down installed / Direct water providing possible
Canister quantity	6 materials possible
Voltage Frequency	220V / 50 Hz, 60 Hz
Power Consumption	1,900 W

LVM-6133

Hot & Ice instant coffee vending machine with touch screen

Features

1. Anti-freezing system - When inside temp. goes below 5°C, hot water circulates to prevent freezing

2. Automatic washing function

3. Stable and low noise cooling system by 2 compressors cycle.

4. High efficiency cooling unit for low energy consumption

5. 46" Touch screen LCD(Mobile payment system and advertisement)

6. Free Mix available by setting ingredient quantity

7. Large capacity ice maker (Max. 3kg)

연구분야 소개
Size(WXHXD)	860 X 1,830 X 730mm
Weight(kg)	205
Touch Screen	32 Inch or 46 Inch
Selling products	Total 24 Selections (Hot & Ice) Instant: 16 selections / Choco or Tea: 8 selections 36 different tastes based on User setting
Vendible quantity	Total 900 cups (6.5oz: 500 cups / 9.0oz: 400 cups)
Cup Size	Optional with 6.5 oz or 9.0 oz
Water supply	Water tank down installed / Direct water providing possible
Cup Size	Optional with 6.5 oz or 9.0 oz
Canister quantity	6 materials possible
Protocol Type	MDB compatible
Voltage Frequency	220V / 50 Hz, 60Hz
Power Consumption	1,900 W
